Tuotenro.: F032116630

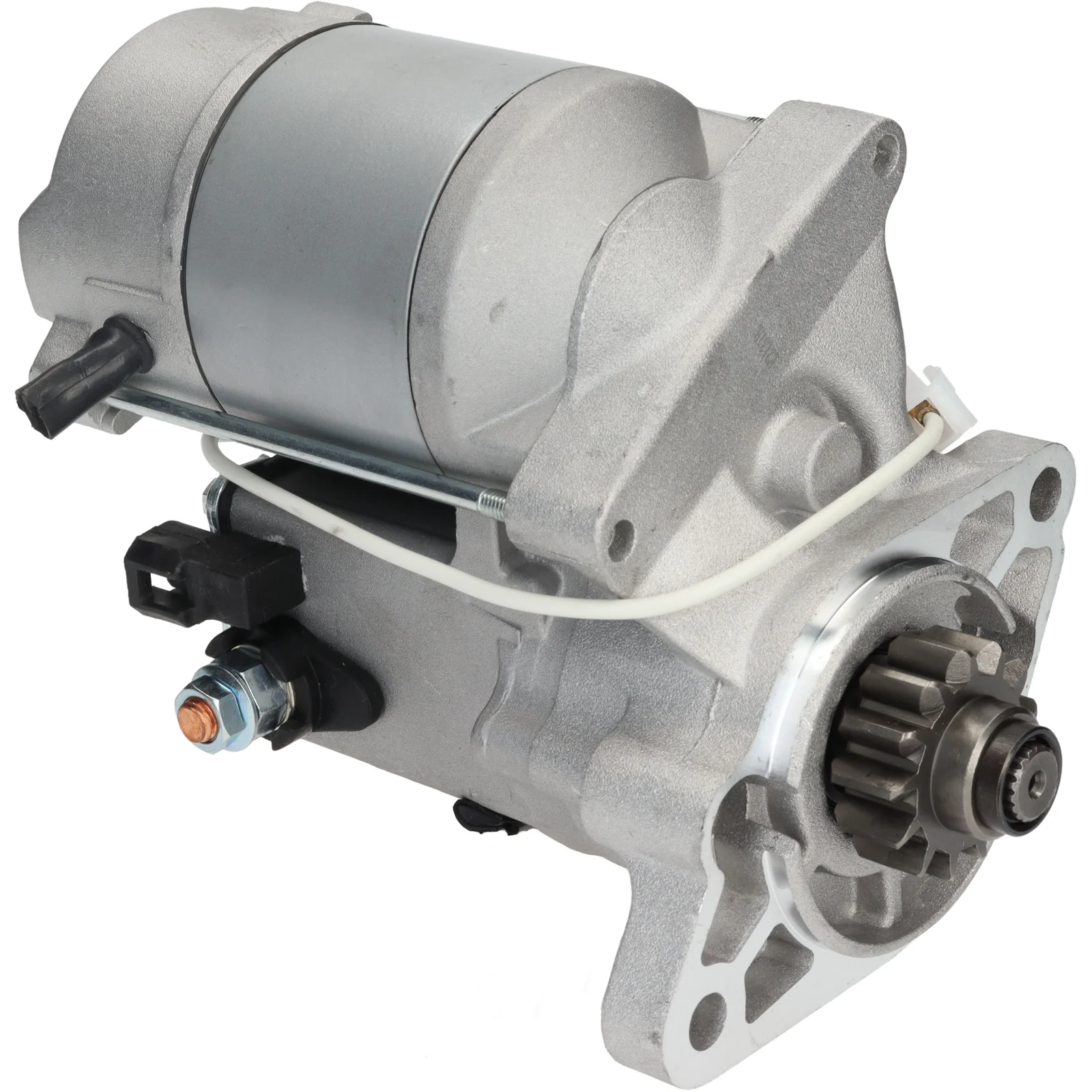

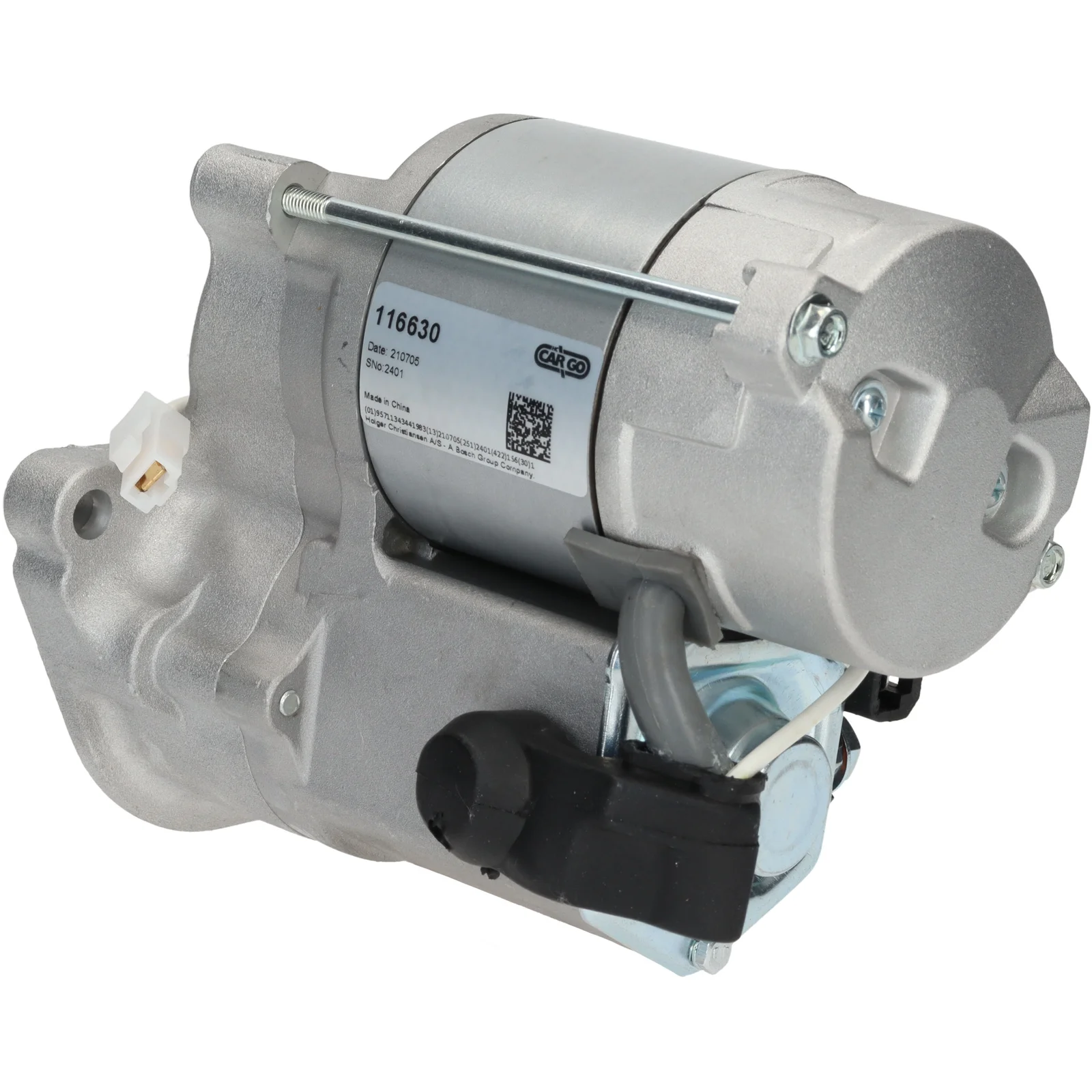

HC-Cargo Starttimoottori

Tekniset tiedot:

Jännitteen: 12, kW: 1.4, No./hampaat: 13, Kääntö: myötäpäivään

Kuvaus

Kubota starttimoottori 12V-1,4kW, 13k 12V - 1,4kW, 13k Vaihtoehto: 91-293-8320 = (9 ratasta) For Yourex tuotteen tilaustunnus 91-293-6320

Jännite: 12
kW: 1,4
Asennusholkin paksuus: 66.00
Vetomattenen pituus: 18.00
Asennusreiän halkaisija 2 mm: 9.00
Asennusreiän halkaisija 1 mm: 9.00
Väli / taka: 158.00
Väli / etu: 31.00
Väli / hampaat: 13
B+: M8
Asema / B+: 15
Asema / 50: 10
Terminaali 50: Pistoke
Välitys tyypiltään: GR
Väli mm: 110.00
Kääntö: myötäpäivään
Kokonaispituus mm: 189.00
Terminaali 30h: Pistoke
Asema / 30h: 45
Väli / asennusreiät: 2 (0)

Määrittely

B+ M8
No./teeth 13
Mount. flange 66.00
No./mount. holes 2 (0)
Position/30h 45
Position/50 10
Position/B+ 15
Rotation CW
Dist./back 158.00
Dist./front 31.00
Drive dist. 18.00
Gear type GR
kW 1.4
Terminal 50 Plug
Voltage 12
Total length 189.00 mm
Dist. 110.00 mm
Terminal 30H Plug mm
Mount. hole 2 9.00 mm
Mount. hole 1 9.00 mm
  • OEM

    F032116630, 16235-63010, 16235-63011, 16235-63012, 16235-63013, 16235-63014, 16235-63015, 17423-63010, 17423-63012, 228000-6320, 228000-6321, 228000-7610, 228000-7611
  • Konkurrentreferens

    CST40185, CST40506, DSN2087, LRS02308, S6277(DENSO), S6277S, 8EA015642-161, 25-3480, 254151, 11090220
  • Bilmärken

    Holder, Kramer, Kubota, Schäffer
  • NormaliseratArtNr

    cst40185, cst40506, dsn2087, f032116630, lrs02308, s6277denso, s6277s, 8ea015642161, 253480, 254151, 11090220, 1623563010, 1623563011, 1623563012, 1623563013, 1623563014, 1623563015, 1742363010, 1742363012, 2280006320, 2280006321, 2280007610, 2280007611
  • Passar modeller

    Holder Series: C Model: 2.34, 2.42, 3.42 Engine type: V-1505...
    Holder Series: C Model: 200, 230, 240 Engine type: V-1505...
    Holder Series: C Model: 330, 340 Engine type: V-1505 T Year: 01.97-
    Kramer Series: 118 Engine type: Kubota
    Kramer Series: 120 Engine type: Kubota
    Kubota Model: Engine Model series: Engine Brand of engine: D1105BH Approved: Yes
    Kubota Model: KX41-2 Model series: KX41-2 Model type: Minibagger Brand of engine: D1105BH From date: 01-01-1997 To date: 01-01-2006 Approved: Yes
    Kubota Model: KX61-2 Model series: KX61-2 Model type: Minibagger Brand of engine: D1105BH From date: 01-01-1997 To date: 01-01-2006 Approved: Yes
    Kubota Model: KX91-2 Model series: KX91-2 Model type: Excavators Brand of engine: V1505-E Approved: Yes
    Kubota Series: Excavator Model: KX 61-2
    Kubota Series: Motor Model: V 1505 BH
    Kubota Series: Motor Model: V 1505 KA
    Kubota Series: Traktor Model: BX 22
    Kubota Series: Traktor Model: BX 2200
    Schäffer Series: Lastare Model: 2336 Engine type: V-1505...
    Schäffer Series: Lastare Model: 2345 Engine type: V-1505...
