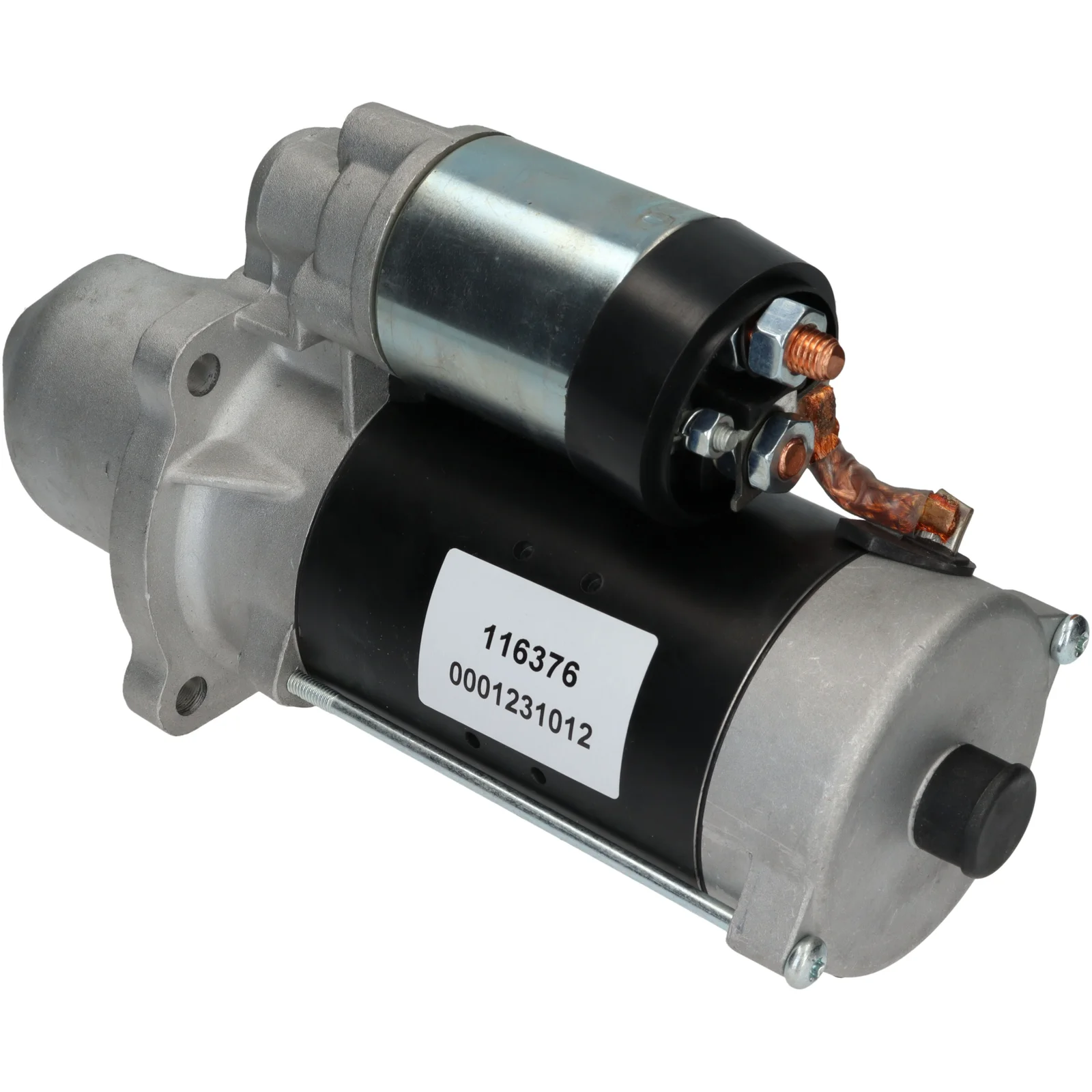

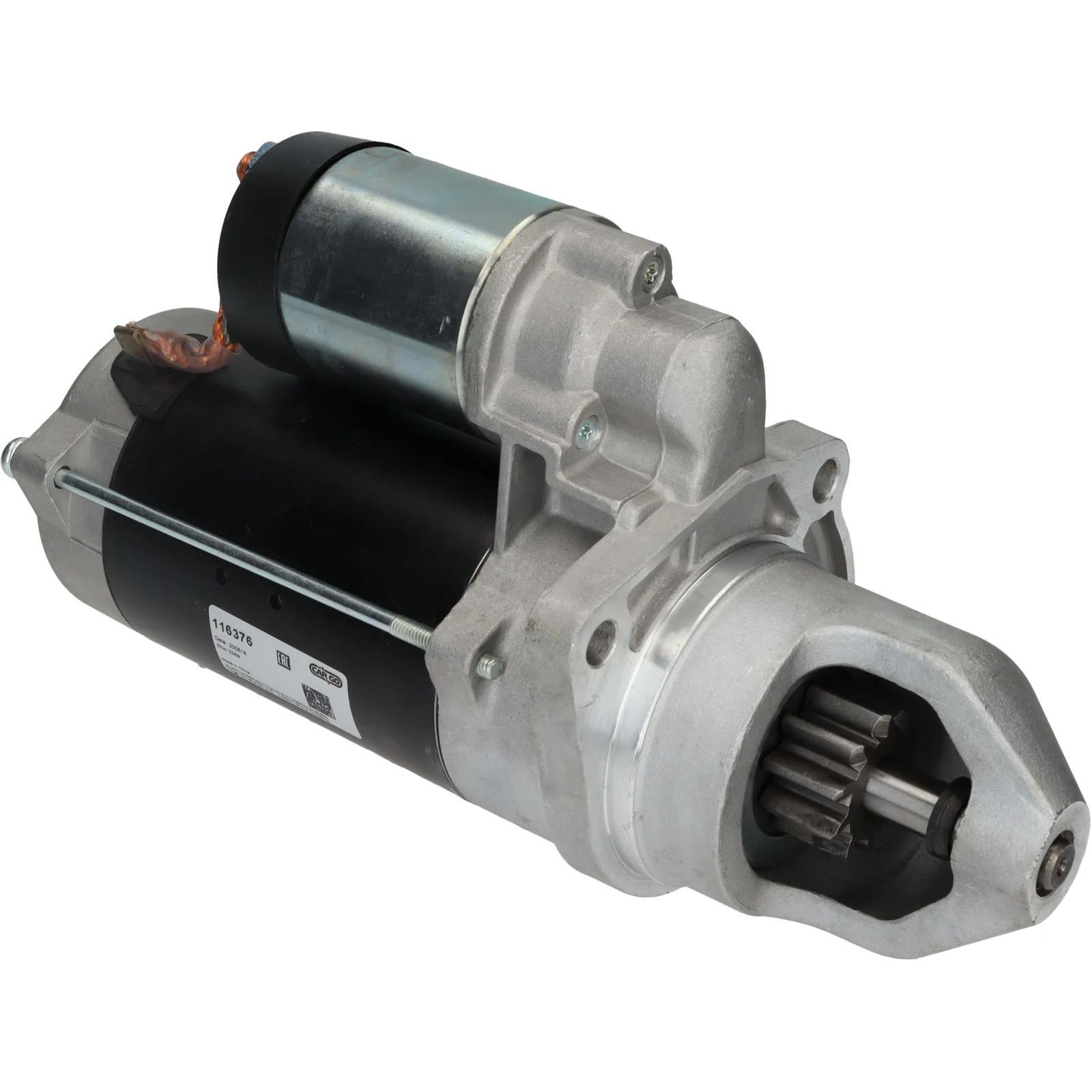

HC-Cargo Starttimoottori
HC-Cargo Starttimoottori
Tuotenro.: F032116376

HC-Cargo Starttimoottori

Tekniset tiedot:

Jännite: 24, kW: 4.0, No./hampaat: 10, Kääntö: myötävaikutus

Kuvaus

jännite: 24
kW: 4.0
kytkentäreikä: 89.00
Vetomatka: 48.00
Kytkentäreiän halkaisija 3 mm: 11.00
Kytkentäreiän halkaisija 2 mm: 11.00
Kytkentäreiän halkaisija 1 mm: 11.00
Etäisyys/taakse: 219.00
Etäisyys/eteen: 96.00
No./hampaat: 10
B+: M10
Sijainti/B+: 60
Sijainti/50: 45
Terminaali 50: M6
Vaihtoehdon tyyppi: GR
Etäisyys 2: 127.00
Etäisyys 3: 90.00
Etäisyys mm: 90.00
Pyörimissuunta: myötäpäivään
Kokonaispituus mm: 315.00
No./kytkentäreiät: 3 (0)

Tiedostot

Määrittely

B+ M10
No./teeth 10
Mount. flange 89.00
No./mount. holes 3 (0)
Position/50 45
Position/B+ 60
Dist. 2 127.00
Dist. 3 90.00
Rotation CW
Dist./back 219.00
Dist./front 96.00
Drive dist. 48.00
Gear type GR
kW 4.0
Terminal 50 M6
Voltage 24
Total length 315.00 mm
Dist. 90.00 mm
Mount. hole 3 11.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    F032116376, 0001231012, 1340895, 19084036

  • Konkurrentreferens
    CST10717, DRT1520, S0235, S0674S, 10388, 30964N, 105687, 220725, 220725A, 11021520, 0986021520

  • NormaliseratArtNr
    cst10717, drt1520, f032116376, s0235, s0674s, 10388, 30964n, 105687, 220725, 220725a, 0001231012, 1340895, 11021520, 19084036, 0986021520

  • Passar modeller
    DAF Model: 65 Model series: 65 CF.180 Size of motor: 6.2 Brand of engine: NS133M Body: Platform / Chassis From date: 01-02-1998 To date: 01-12-2000 Fuel: Diesel Approved: Yes
    DAF Model: 65 Model series: 65 CF.210 Size of motor: 6.2 Brand of engine: NS156M Body: Platform / Chassis From date: 01-02-1998 To date: 01-12-2000 Fuel: Diesel Approved: Yes
    DAF Model: 65 Model series: 65 CF.240 Size of motor: 6.2 Brand of engine: NS177M Body: Platform / Chassis From date: 01-02-1998 To date: 01-12-2000 Fuel: Diesel Approved: Yes
    DAF Model: 65 Model series: 65.180 Size of motor: 6.2 Brand of engine: NS133L Body: Platform / Chassis From date: 01-03-1993 To date: 01-02-1998 Fuel: Diesel Approved: Yes
    DAF Model: 65 Model series: 65.180 Size of motor: 6.2 Brand of engine: NS133M Body: Platform / Chassis From date: 01-03-1993 To date: 01-02-1998 Fuel: Diesel Approved: Yes
    DAF Model: 65 Model series: 65.210 Size of motor: 6.2 Brand of engine: NS156L Body: Platform / Chassis From date: 01-03-1993 To date: 01-02-1998 Fuel: Diesel Approved: Yes
    DAF Model: 65 Model series: 65.210 Size of motor: 6.2 Brand of engine: NS156M Body: Platform / Chassis From date: 01-03-1993 To date: 01-02-1998 Fuel: Diesel Approved: Yes
    DAF Model: 65 Model series: 65.240 Size of motor: 6.2 Brand of engine: NS177M Body: Platform / Chassis From date: 01-05-1996 To date: 01-02-1998 Fuel: Diesel Approved: Yes
    DAF Model: F Model series: F 1100 Size of motor: 6.2 Brand of engine: DNTD620 Body: Platform / Chassis From date: 01-12-1986 To date: 01-11-1990 Fuel: Diesel Approved: Yes
    DAF Model: F Model series: F 1300 Size of motor: 6.2 Brand of engine: DF615 Body: Platform / Chassis From date: 01-07-1978 To date: 01-10-1988 Fuel: Diesel Approved: Yes
    DAF Model: F Model series: F 1300 Size of motor: 6.2 Brand of engine: DNT620 Body: Platform / Chassis From date: 01-12-1986 To date: 01-12-1992 Fuel: Diesel Approved: Yes
    DAF Model: F Model series: F 1300 Size of motor: 6.2 Brand of engine: DNTD620 Body: Platform / Chassis From date: 01-12-1986 To date: 01-12-1992 Fuel: Diesel Approved: Yes
    DAF Model: F Model series: F 1300 Size of motor: 6.2 Brand of engine: DT615 Body: Platform / Chassis From date: 01-07-1978 To date: 01-02-1990 Fuel: Diesel Approved: Yes
    DAF Model: F Model series: F 1300 Size of motor: 6.2 Brand of engine: NT116 Body: Platform / Chassis From date: 01-12-1986 To date: 01-12-1992 Fuel: Diesel Approved: Yes
    DAF Model: F Model series: F 1300 Size of motor: 6.2 Brand of engine: NT133 Body: Platform / Chassis From date: 01-12-1986 To date: 01-12-1992 Fuel: Diesel Approved: Yes
    DAF Model: F Model series: F 1500 Size of motor: 6.2 Brand of engine: DF615 Body: Platform / Chassis From date: 01-07-1978 To date: 01-08-1991 Fuel: Diesel Approved: Yes
    DAF Model: F Model series: F 1500 Size of motor: 6.2 Brand of engine: DT615 Body: Platform / Chassis From date: 01-07-1978 To date: 01-08-1991 Fuel: Diesel Approved: Yes
    DAF Model: F Model series: F 1600 Size of motor: 6.2 Brand of engine: DF615 Body: Platform / Chassis From date: 01-01-1970 To date: 01-08-1991 Fuel: Diesel Approved: Yes
    DAF Model: F Model series: F 1600 Size of motor: 6.2 Brand of engine: DT615 Body: Platform / Chassis From date: 01-01-1973 To date: 01-08-1991 Fuel: Diesel Approved: Yes
    DAF Model: F Model series: F 1700 Size of motor: 6.2 Brand of engine: DNS620 Body: Platform / Chassis From date: 01-01-1988 To date: 01-02-1995 Fuel: Diesel Approved: Yes
    DAF Model: F Model series: F 1700 Size of motor: 6.2 Brand of engine: DNT620 Body: Platform / Chassis From date: 01-12-1986 To date: 01-02-1995 Fuel: Diesel Approved: Yes
    DAF Model: F Model series: F 1700 Size of motor: 6.2 Brand of engine: DNTD620 Body: Platform / Chassis From date: 01-12-1986 To date: 01-02-1995 Fuel: Diesel Approved: Yes
    DAF Model: F Model series: F 1700 Size of motor: 6.2 Brand of engine: NT116 Body: Platform / Chassis From date: 01-12-1986 To date: 01-02-1995 Fuel: Diesel Approved: Yes
    DAF Model: F Model series: F 1700 Size of motor: 6.2 Brand of engine: NT133 Body: Platform / Chassis From date: 01-12-1986 To date: 01-02-1995 Fuel: Diesel Approved: Yes
    DAF Model: F Model series: F 1800 Size of motor: 6.2 Brand of engine: DT615 Body: Dump Truck From date: 01-01-1970 To date: 01-08-1991 Fuel: Diesel Approved: Yes
    DAF Model: F Model series: F 1900 Size of motor: 6.2 Brand of engine: DNS620 Body: Platform / Chassis From date: 01-12-1986 To date: 01-09-1993 Fuel: Diesel Approved: Yes
    DAF Model: F Model series: F 1900 Size of motor: 6.2 Brand of engine: DNT620 Body: Platform / Chassis From date: 01-12-1986 To date: 01-09-1993 Fuel: Diesel Approved: Yes
    DAF Model: F Model series: F 1900 Size of motor: 6.2 Brand of engine: NT133 Body: Platform / Chassis From date: 01-12-1986 To date: 01-09-1993 Fuel: Diesel Approved: Yes
    DAF Model: F Model series: F 2100 Size of motor: 6.2 Brand of engine: DF615 Body: Platform / Chassis From date: 01-07-1978 To date: 01-09-1986 Fuel: Diesel Approved: Yes
    DAF Model: F Model series: F 2105 Size of motor: 6.2 Brand of engine: DF615 Body: Platform / Chassis From date: 01-07-1978 To date: 01-09-1986 Fuel: Diesel Approved: Yes
    1 / 6
  • Kuvaus
    jännite: 24
    kW: 4.0
    kytkentäreikä: 89.00
    Vetomatka: 48.00
    Kytkentäreiän halkaisija 3 mm: 11.00
    Kytkentäreiän halkaisija 2 mm: 11.00
    Kytkentäreiän halkaisija 1 mm: 11.00
    Etäisyys/taakse: 219.00
    Etäisyys/eteen: 96.00
    No./hampaat: 10
    B+: M10
    Sijainti/B+: 60
    Sijainti/50: 45
    Terminaali 50: M6
    Vaihtoehdon tyyppi: GR
    Etäisyys 2: 127.00
    Etäisyys 3: 90.00
    Etäisyys mm: 90.00
    Pyörimissuunta: myötäpäivään
    Kokonaispituus mm: 315.00
    No./kytkentäreiät: 3 (0)

    Tiedostot

  • Määrittely
    B+ M10
    No./teeth 10
    Mount. flange 89.00
    No./mount. holes 3 (0)
    Position/50 45
    Position/B+ 60
    Dist. 2 127.00
    Dist. 3 90.00
    Rotation CW
    Dist./back 219.00
    Dist./front 96.00
    Drive dist. 48.00
    Gear type GR
    kW 4.0
    Terminal 50 M6
    Voltage 24
    Total length 315.00 mm
    Dist. 90.00 mm
    Mount. hole 3 11.00 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Nämä ajoneuvot sopivat

    • OEM
      F032116376, 0001231012, 1340895, 19084036

    • Konkurrentreferens
      CST10717, DRT1520, S0235, S0674S, 10388, 30964N, 105687, 220725, 220725A, 11021520, 0986021520

    • NormaliseratArtNr
      cst10717, drt1520, f032116376, s0235, s0674s, 10388, 30964n, 105687, 220725, 220725a, 0001231012, 1340895, 11021520, 19084036, 0986021520

    • Passar modeller
      DAF Model: 65 Model series: 65 CF.180 Size of motor: 6.2 Brand of engine: NS133M Body: Platform / Chassis From date: 01-02-1998 To date: 01-12-2000 Fuel: Diesel Approved: Yes
      DAF Model: 65 Model series: 65 CF.210 Size of motor: 6.2 Brand of engine: NS156M Body: Platform / Chassis From date: 01-02-1998 To date: 01-12-2000 Fuel: Diesel Approved: Yes
      DAF Model: 65 Model series: 65 CF.240 Size of motor: 6.2 Brand of engine: NS177M Body: Platform / Chassis From date: 01-02-1998 To date: 01-12-2000 Fuel: Diesel Approved: Yes
      DAF Model: 65 Model series: 65.180 Size of motor: 6.2 Brand of engine: NS133L Body: Platform / Chassis From date: 01-03-1993 To date: 01-02-1998 Fuel: Diesel Approved: Yes
      DAF Model: 65 Model series: 65.180 Size of motor: 6.2 Brand of engine: NS133M Body: Platform / Chassis From date: 01-03-1993 To date: 01-02-1998 Fuel: Diesel Approved: Yes
      DAF Model: 65 Model series: 65.210 Size of motor: 6.2 Brand of engine: NS156L Body: Platform / Chassis From date: 01-03-1993 To date: 01-02-1998 Fuel: Diesel Approved: Yes
      DAF Model: 65 Model series: 65.210 Size of motor: 6.2 Brand of engine: NS156M Body: Platform / Chassis From date: 01-03-1993 To date: 01-02-1998 Fuel: Diesel Approved: Yes
      DAF Model: 65 Model series: 65.240 Size of motor: 6.2 Brand of engine: NS177M Body: Platform / Chassis From date: 01-05-1996 To date: 01-02-1998 Fuel: Diesel Approved: Yes
      DAF Model: F Model series: F 1100 Size of motor: 6.2 Brand of engine: DNTD620 Body: Platform / Chassis From date: 01-12-1986 To date: 01-11-1990 Fuel: Diesel Approved: Yes
      DAF Model: F Model series: F 1300 Size of motor: 6.2 Brand of engine: DF615 Body: Platform / Chassis From date: 01-07-1978 To date: 01-10-1988 Fuel: Diesel Approved: Yes
      DAF Model: F Model series: F 1300 Size of motor: 6.2 Brand of engine: DNT620 Body: Platform / Chassis From date: 01-12-1986 To date: 01-12-1992 Fuel: Diesel Approved: Yes
      DAF Model: F Model series: F 1300 Size of motor: 6.2 Brand of engine: DNTD620 Body: Platform / Chassis From date: 01-12-1986 To date: 01-12-1992 Fuel: Diesel Approved: Yes
      DAF Model: F Model series: F 1300 Size of motor: 6.2 Brand of engine: DT615 Body: Platform / Chassis From date: 01-07-1978 To date: 01-02-1990 Fuel: Diesel Approved: Yes
      DAF Model: F Model series: F 1300 Size of motor: 6.2 Brand of engine: NT116 Body: Platform / Chassis From date: 01-12-1986 To date: 01-12-1992 Fuel: Diesel Approved: Yes
      DAF Model: F Model series: F 1300 Size of motor: 6.2 Brand of engine: NT133 Body: Platform / Chassis From date: 01-12-1986 To date: 01-12-1992 Fuel: Diesel Approved: Yes
      DAF Model: F Model series: F 1500 Size of motor: 6.2 Brand of engine: DF615 Body: Platform / Chassis From date: 01-07-1978 To date: 01-08-1991 Fuel: Diesel Approved: Yes
      DAF Model: F Model series: F 1500 Size of motor: 6.2 Brand of engine: DT615 Body: Platform / Chassis From date: 01-07-1978 To date: 01-08-1991 Fuel: Diesel Approved: Yes
      DAF Model: F Model series: F 1600 Size of motor: 6.2 Brand of engine: DF615 Body: Platform / Chassis From date: 01-01-1970 To date: 01-08-1991 Fuel: Diesel Approved: Yes
      DAF Model: F Model series: F 1600 Size of motor: 6.2 Brand of engine: DT615 Body: Platform / Chassis From date: 01-01-1973 To date: 01-08-1991 Fuel: Diesel Approved: Yes
      DAF Model: F Model series: F 1700 Size of motor: 6.2 Brand of engine: DNS620 Body: Platform / Chassis From date: 01-01-1988 To date: 01-02-1995 Fuel: Diesel Approved: Yes
      DAF Model: F Model series: F 1700 Size of motor: 6.2 Brand of engine: DNT620 Body: Platform / Chassis From date: 01-12-1986 To date: 01-02-1995 Fuel: Diesel Approved: Yes
      DAF Model: F Model series: F 1700 Size of motor: 6.2 Brand of engine: DNTD620 Body: Platform / Chassis From date: 01-12-1986 To date: 01-02-1995 Fuel: Diesel Approved: Yes
      DAF Model: F Model series: F 1700 Size of motor: 6.2 Brand of engine: NT116 Body: Platform / Chassis From date: 01-12-1986 To date: 01-02-1995 Fuel: Diesel Approved: Yes
      DAF Model: F Model series: F 1700 Size of motor: 6.2 Brand of engine: NT133 Body: Platform / Chassis From date: 01-12-1986 To date: 01-02-1995 Fuel: Diesel Approved: Yes
      DAF Model: F Model series: F 1800 Size of motor: 6.2 Brand of engine: DT615 Body: Dump Truck From date: 01-01-1970 To date: 01-08-1991 Fuel: Diesel Approved: Yes
      DAF Model: F Model series: F 1900 Size of motor: 6.2 Brand of engine: DNS620 Body: Platform / Chassis From date: 01-12-1986 To date: 01-09-1993 Fuel: Diesel Approved: Yes
      DAF Model: F Model series: F 1900 Size of motor: 6.2 Brand of engine: DNT620 Body: Platform / Chassis From date: 01-12-1986 To date: 01-09-1993 Fuel: Diesel Approved: Yes
      DAF Model: F Model series: F 1900 Size of motor: 6.2 Brand of engine: NT133 Body: Platform / Chassis From date: 01-12-1986 To date: 01-09-1993 Fuel: Diesel Approved: Yes
      DAF Model: F Model series: F 2100 Size of motor: 6.2 Brand of engine: DF615 Body: Platform / Chassis From date: 01-07-1978 To date: 01-09-1986 Fuel: Diesel Approved: Yes
      DAF Model: F Model series: F 2105 Size of motor: 6.2 Brand of engine: DF615 Body: Platform / Chassis From date: 01-07-1978 To date: 01-09-1986 Fuel: Diesel Approved: Yes
